Being one of the well-distinguished companies in the market, we are involved in offering Compact Electrical Substation.

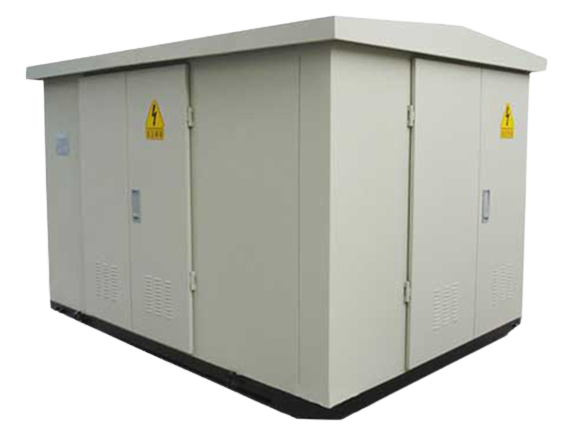

A Unitized Substation (USS) is a nutshell product comprising of various substation equipment, housed inside a metal enclosure, such as a step-down transformer, a Vacuum Circuit Breaker (VCB) or a Ring Main Unit (RMU) on High Voltage (HV) side and Low Voltage (LV) distribution panel in LV side compartment.

The fully equipped package substation (PSS) comprises of outdoor duty enclosure, medium voltage switchgear, distribution transformer, low voltage panel & AFPCR panel (optional) is a state of art equipment for all your power distribution requirements. The factory assembled self-contained package substation is a complete


RANGE OF COMPACT SUBSTATION

  • 11kV 63-3000kVA Indoor / Outdoor Compact Substation Panel.
  • 22kV 63-3000kVA Indoor / Outdoor Compact Substation Panel.
  • 33kV 63-3000kVA Indoor / Outdoor Compact Substation Panel.
HV Compartment          Transformer Compartment           LV Compartment

Vacuum Circuit Breaker                   Dry Type Transformer                                    Air Circuit Breaker

SF6 Ring Main Units                         Oil Cooled Transformer                                 Molded Case Circuit Breaker

Load Break Switch                                                                                                      APFCR Panel

Metering Unit                                                                                                                As per request


FEATURES

  • Factory assembled and ready to install.
  • Compact Construction.
  • Ease of access to components.
  • Reduction in installation space, cost & time.
  • SCADA Compatible.
  • Standard design / low weight / small volume / transformer room accessible both side
  • Shutters / provisional cable entry / 100% non-porous powder coating.
  • ADVANTAGES Compact, Safety and Aesthetically superior.
  • Reduced Electrical losses as USS can be provided near the Load Center.
  • A High degree of safety and operational reliability is achieved by HT & LT Switchgears and protective relays to avoid overloading.
  • Reduction in logistic cost as USS is packaged and delivered as one unit.
  • Low Civil/Foundation Cost.


ELECTRICAL INTERLOCK

Our USS Panel consists of inbuilt safety interlocks such as door limit switches for transformer doors/LT Panel doors. If anybody try to open the transformer /LT Panel doors accidentally when the sub-station is in energized condition, then the HV switchgear automatically trips and power supply will be cut-off.


MECHANICAL INTERLOCK

Mechanical interlock will be provided between HV Switchgear and transformer door by means of castle key arrangement, in such a way that the transformer doors can be opened only when the HV Switchgear is switched off and vice- versa.


APPLICATIONS

  • Commercial Buildings
  • Mining
  • Oil and Gas Plants
  • Industries
  • Hospitals
  • Solar Plants
